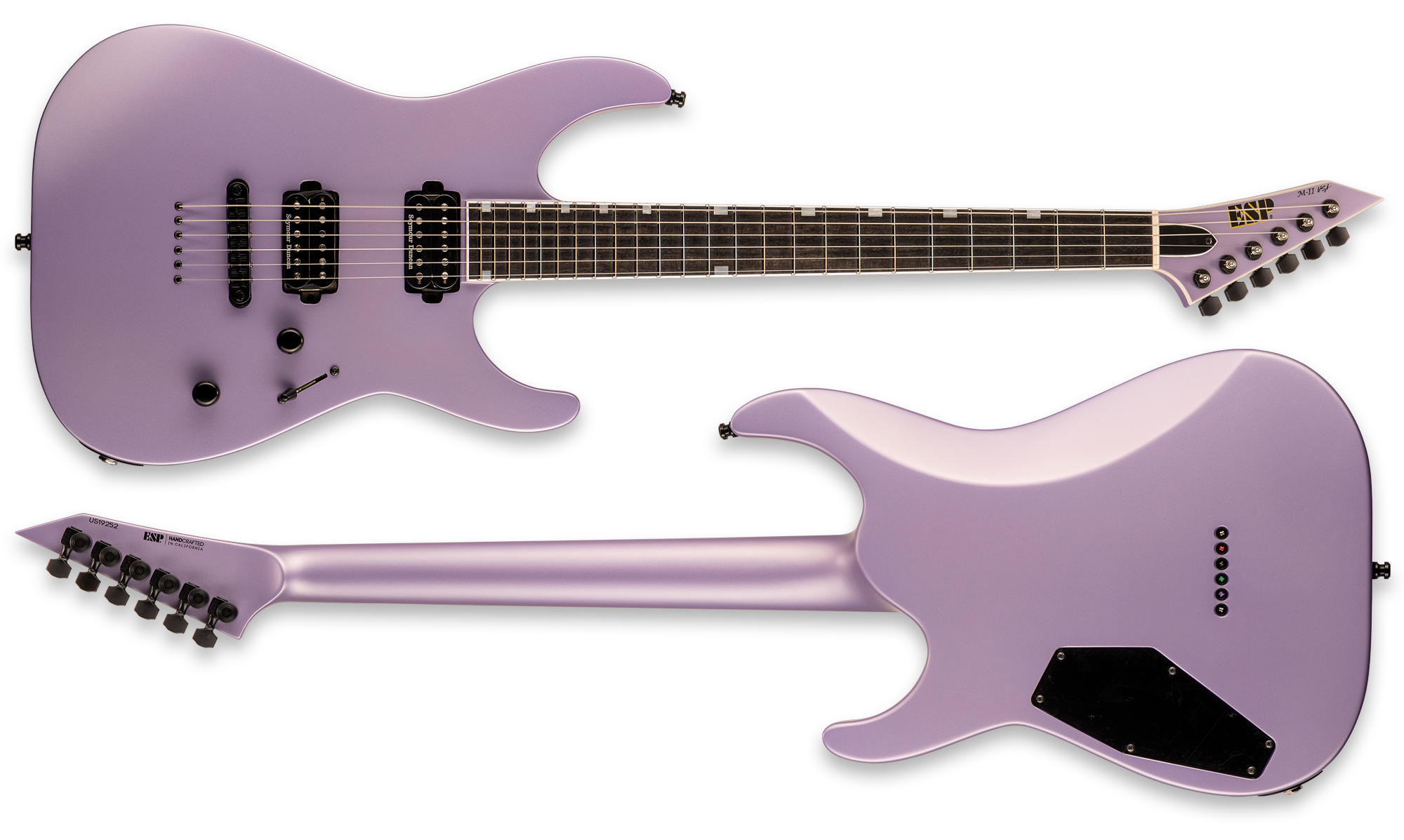

M-II NTB NT

ESP USA 2018

Starting at $3,499
Pictured build: $3,899

Crafted at our ESP USA facility in Southern California, the USA M-II NTB stands for “neck thru body”, and that’s exactly what it is… a shredder’s dream for those who love the stability and sustain of guitars with neck-thru construction. It offers an extra thin U-shaped three-piece maple neck with mahogany body wings. Optional premier-quality figured-wood tops are available on the USA M-II NTB NT including flamed maple, quilted maple, lacewood, zebrawood, and koa, with a variety of amazing translucent gloss and satin finishes to choose from, as well as an ebony fingerboard with mother-of-pearl offset block inlays.

The parts and components on the USA M-II NTB NT are second to none, and include 24 extra-jumbo Jescar stainless steel frets, a TonePros locking TOM bridge with string-thru-body design, a bone nut, Sperzel Trim-Lok tuners, Schaller strap locks, and a variety of high-end Seymour Duncan or EMG pickups, with a push-pull coil split control on the tone knob for passive pickup models. The USA M-II NTB NT includes a high-quality ESP USA form-fitting hard shell case.

FEATURES

Graphite Neck Reinforcement Bars

Get maximum strength and stability from your guitar’s neck, with higher long-term reliability. All ESP USA models are made with two high-strength bars of carbon fiber.

Drop Top w/ Natural Masked Binding

The droptop design on many of our ESP USA models allows for the beauty of a figured top that’s bent over the arm contour, adding a little brightness to the overall sound while retaining the warmth of the body wood. The natural masked binding edge adds amazing visual contrast.

3-Piece Neck Thru Body

ESP USA models that offer a neck-thru-body design incorporate a three-piece laminated neck design. This increases the strength and stability of the neck, leading to better long-term reliability along with excellent tone and sustain.

BODY

BODY WOOD:
Mahogany Wings
BODY THICKNESS:
45mm
NECK CONSTRUCTION:
Neck-Thru

NECK

NECK WOOD:
3 Pc Maple
FINGERBOARD:
Ebony
SCALE LENGTH:
25.5”
NUT WIDTH:
43mm
NUT TYPE:
Bone
FINGERBOARD RADIUS:
305mm
NECK CONTOUR:
Extra Thin U
THICKNESS @ 1ST FRET:
19mm
THICKNESS @ 12TH FRET:
21mm
FRETS:
24 JESCAR FW57110 XJ Stainless
NECK FINISH:
Matching
HEAD CAP:
Matching Top
TRUSS ROD:
2 Way Adjustable w/ Graphite Reinforcements

HARDWARE

BRIDGE:
TonePros T3BT Locking TOM w/ String Thru Body
TUNERS:
Sperzel Trim-Lok
STRAP BUTTONS:
Schaller Straplock

ELECTRONICS

CONTROLS:
Vol/Tone/3-Way Switch
OTHER:
Push Pull Coil Split on Tone (Passive P.U. Only)

PLAYABILITY & SETUP

STRINGS:
D’Addario NYXL SUP LITE (.009 - .042)
CASE:
ESP USA Form Fit

PERSONALIZED OPTIONS

TOPWOOD:
Flamed Maple / Quilted Maple / Zebrawood / Lacewood / Koa / Open Grain Ash / Open Grain Mahogany / Solid Color
PICKUPS:
Seymour Duncan Set / EMG Set: See available sets
HARDWARE COLOR:
Chrome / Black / Gold
FINISH COLOR:
See available colors
FINISH STYLE:
Gloss / Satin
