USA M-II FR
M-II FR
ESP USA

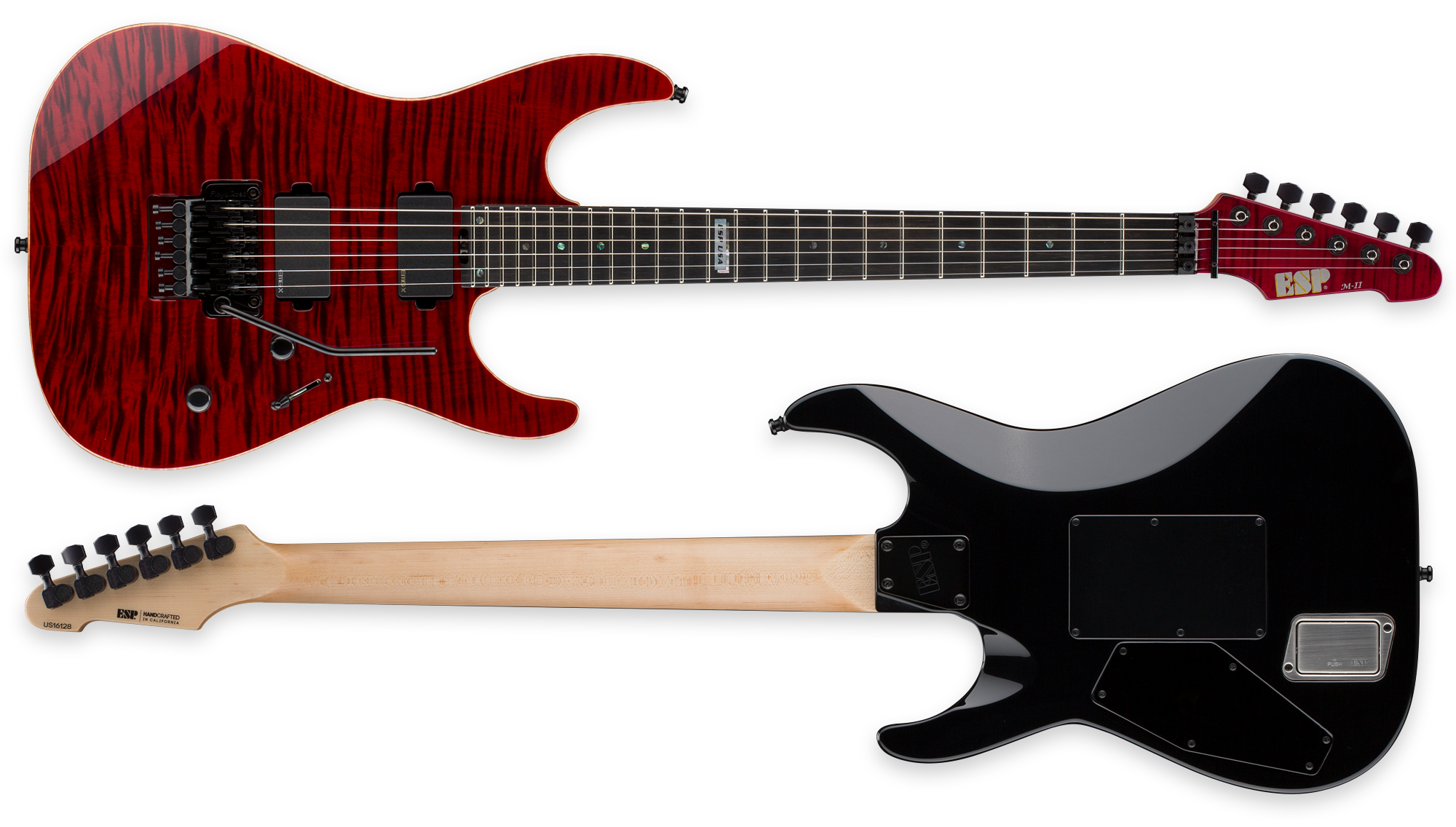

Crafted at our ESP USA facility in Southern California, the USA M-II FR offers a high-end take on one of the world’s most beloved shred guitars. It offers a mahogany body with bolt-on construction to its extra thin U-shaped quarter-sawn maple neck with natural satin finish for the smoothest and fastest playing experience. Optional premier-quality figured-wood tops are available on the USA M-II FR including flamed maple, quilted maple, lacewood, zebrawood, and koa, with a variety of amazing translucent gloss and satin finishes to choose from, as well as both maple and ebony fingerboards with clean abalone dot inlays.
The parts and components on the USA M-II FR are second to none, and include 24 extra-jumbo Jescar stainless steel frets, an Original Floyd Rose floating tremolo, Gotoh Magnum Lock tuners, Dunlop strap locks, and a variety of high-end Seymour Duncan, EMG or Fishman pickups, with a push-pull coil split control on the tone knob for passive pickup models. The USA M-II FR includes a high-quality ESP USA form-fitting hard shell case.
FEATURES

Graphite Neck Reinforcement Bars
Get maximum strength and stability from your guitar’s neck, with higher long-term reliability. All ESP USA models are made with two high-strength bars of carbon fiber.

Drop Top w/ Natural Masked Binding
The droptop design on many of our ESP USA models allows for the beauty of a figured top that’s bent over the arm contour, adding a little brightness to the overall sound while retaining the warmth of the body wood. The natural masked binding edge adds amazing visual contrast.

Deep Dish Jack
In addition to looking sleek, the Deep Dish jack installed on ESP USA models has the added benefit of providing the depth and angle of the cable to be easily looped around the player’s strap to better protect the cable from crimps or other damage.
BODY
- BODY WOOD:
- Mahogany
- BODY THICKNESS:
- 45mm
- NECK CONSTRUCTION:
- Bolt-On
NECK
- NECK WOOD:
- Quarter Sawn Maple
- FINGERBOARD:
- Ebony
- SCALE LENGTH:
- 25.5”
- NUT WIDTH:
- 43mm
- NUT TYPE:
- R3 Locking
- FINGERBOARD RADIUS:
- 305mm
- NECK CONTOUR:
- Extra Thin U
- THICKNESS @ 1ST FRET:
- 19mm
- THICKNESS @ 12TH FRET:
- 21mm
- FRETS:
- 24 JESCAR FW57110 XJ Stainless
- NECK FINISH:
- Natural Satin
- HEAD CAP:
- Matching Top
- TRUSS ROD:
- 2 Way Adjustable w/ Graphite Reinforcements
HARDWARE
- BRIDGE:
- Original Floyd Rose
- TUNERS:
- Gotoh Magnum Lock
- STRAP BUTTONS:
- Dunlop Locking
ELECTRONICS
- CONTROLS:
- Vol/Tone/3-Way Switch
- OTHER:
- Push Pull Coil Split on Tone (Passive P.U. Only)
PLAYABILITY & SETUP
- STRINGS:
- D’Addario NYXL SUP LITE (.009 - .042)
- CASE:
- ESP USA Form Fit
PERSONALIZED OPTIONS
- TOPWOOD:
- Flamed Maple / Quilted Maple / Zebrawood / Lacewood / Koa / Open Grain Ash / Open Grain Mahogany / Solid Color
- PICKUPS:
- Seymour Duncan / EMG / Fishman: See available sets
- HARDWARE COLOR:
- Chrome / Black / Gold
- FINISH COLOR:
- See available colors
- FINISH STYLE:
- Gloss / Satin
