USA ECLIPSE
ECLIPSE
ESP USA

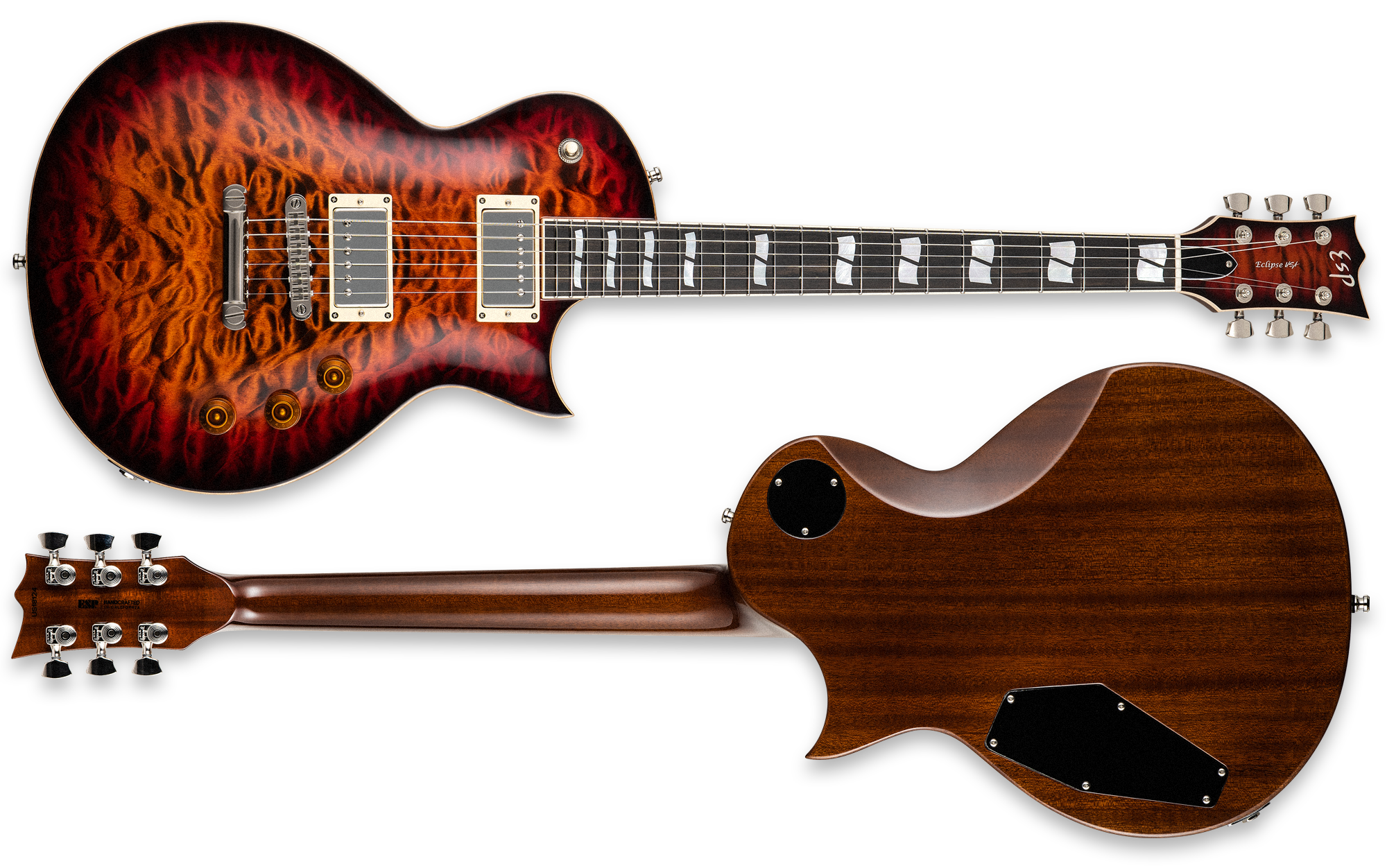

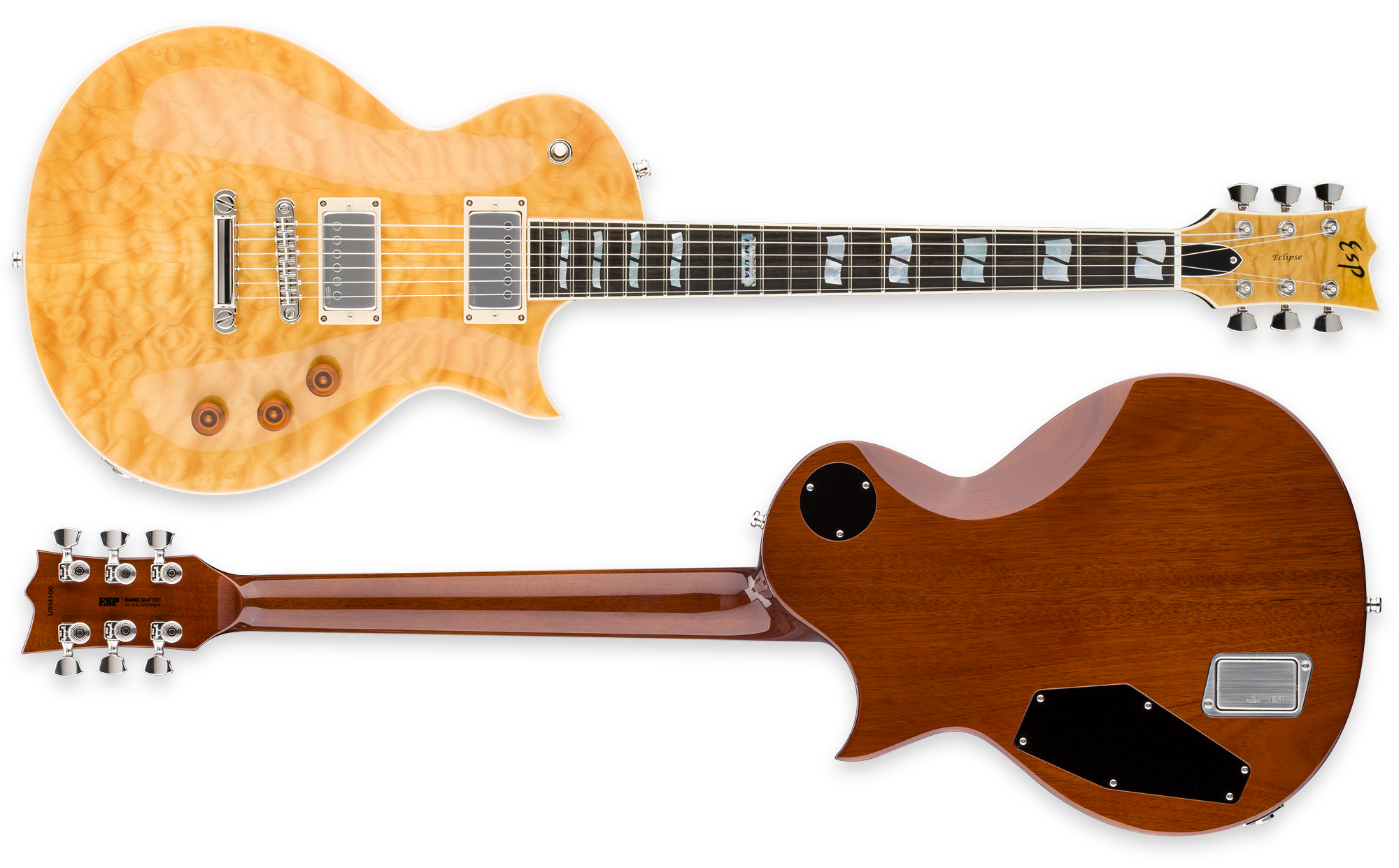

Crafted at our ESP USA facility in Southern California, the USA Eclipse is the classic single-cutaway shape that’s been at the heart of many of music’s greatest moments. The USA Eclipse offers a full thickness (60mm / 2 3/8”), a strategically chambered mahogany body for weight relief, with optional flamed maple and quilted maple tops and a wide variety of gloss and satin translucent finishes to allow the figured wood grain to be highlighted (and plain maple caps for solid color finishes). These guitars offer smooth set-thru construction at classic 24.75” scale, with a three-piece thin U-shaped three-piece mahogany neck and ebony fingerboard with 22 extra-jumbo Jescar stainless steel frets and mother-of-pearl split-flag inlays.
We chose the very best components available for the USA Eclipse, including Gotoh Magnum Lock tuners, TonePros locking TOM bridge and tailpiece, Dunlop strap locks, and a bone nut. Pickups for the USA Eclipse include a variety of world-class Seymour Duncan (passive), EMG (active) and Fishman (active) models, with a push-pull coil split control on the tone knob for passive pickup models. The USA Eclipse includes a high-quality ESP USA form-fitting hard shell case.
FEATURES

Graphite Neck Reinforcement Bars
Get maximum strength and stability from your guitar’s neck, with higher long-term reliability. All ESP USA models are made with two high-strength bars of carbon fiber.

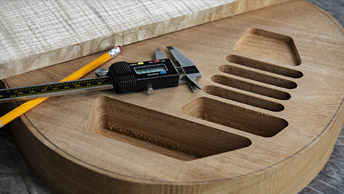

Weight relief chambering
The ESP USA Eclipse offers a traditional full-thickness body, but is strategically chambered so the weight of the guitar remains comfortable and noticeably lighter than most classic single-cut body style guitars.

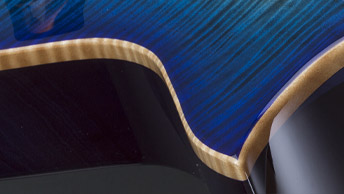

Full Thickness Carved Top w/ Natural Masked Binding
Over a half inch of beautiful figured maple is carved to our ESP USA Eclipse contours, allowing for the natural masked binding to highlight the exquisite top.
BODY
- BODY WOOD:
- Chambered Mahogany
- BODY THICKNESS:
- 60mm
- NECK CONSTRUCTION:
- Set-Thru
NECK
- NECK WOOD:
- 3 Pc Mahogany
- FINGERBOARD:
- Ebony
- SCALE LENGTH:
- 24.75”
- NUT WIDTH:
- 42mm
- NUT TYPE:
- Bone
- FINGERBOARD RADIUS:
- 305mm
- NECK CONTOUR:
- Thin U
- THICKNESS @ 1ST FRET:
- 20mm
- THICKNESS @ 12TH FRET:
- 22mm
- FRETS:
- 22 JESCAR FW57110 XJ Stainless
- NECK FINISH:
- Matching Color
- HEAD CAP:
- Matching Top
- TRUSS ROD:
- 2 Way Adjustable w/ Graphite Reinforcements
HARDWARE
- BRIDGE:
- TonePros T3BT Locking TOM w/ T1Z Locking Tailpiece
- TUNERS:
- Gotoh Magnum Lock
- STRAP BUTTONS:
- Dunlop Locking
ELECTRONICS
- CONTROLS:
- Vol/Vol/Tone/3-Way Toggle
- OTHER:
- Push Pull Coil Split on Tone (Passive P.U. Only)
PLAYABILITY & SETUP
- STRINGS:
- D’Addario NYXL REG LITE (.010 - .046)
- CASE:
- ESP USA Form Fit
PERSONALIZED OPTIONS
- TOPWOOD:
- Flamed Maple / Quilted Maple / Open Grain Mahogany / Solid Color
- PICKUPS:
- Seymour Duncan Set / EMG Set / Fishman Set: See available sets
- HARDWARE COLOR:
- Chrome / Black / Gold
- KNOB COLOR:
- Amber / Black / Gold
- PICKUP RING COLOR:
- Creme / Black
- FINISH COLOR:
- See available colors
- FINISH STYLE:
- Gloss / Satin
